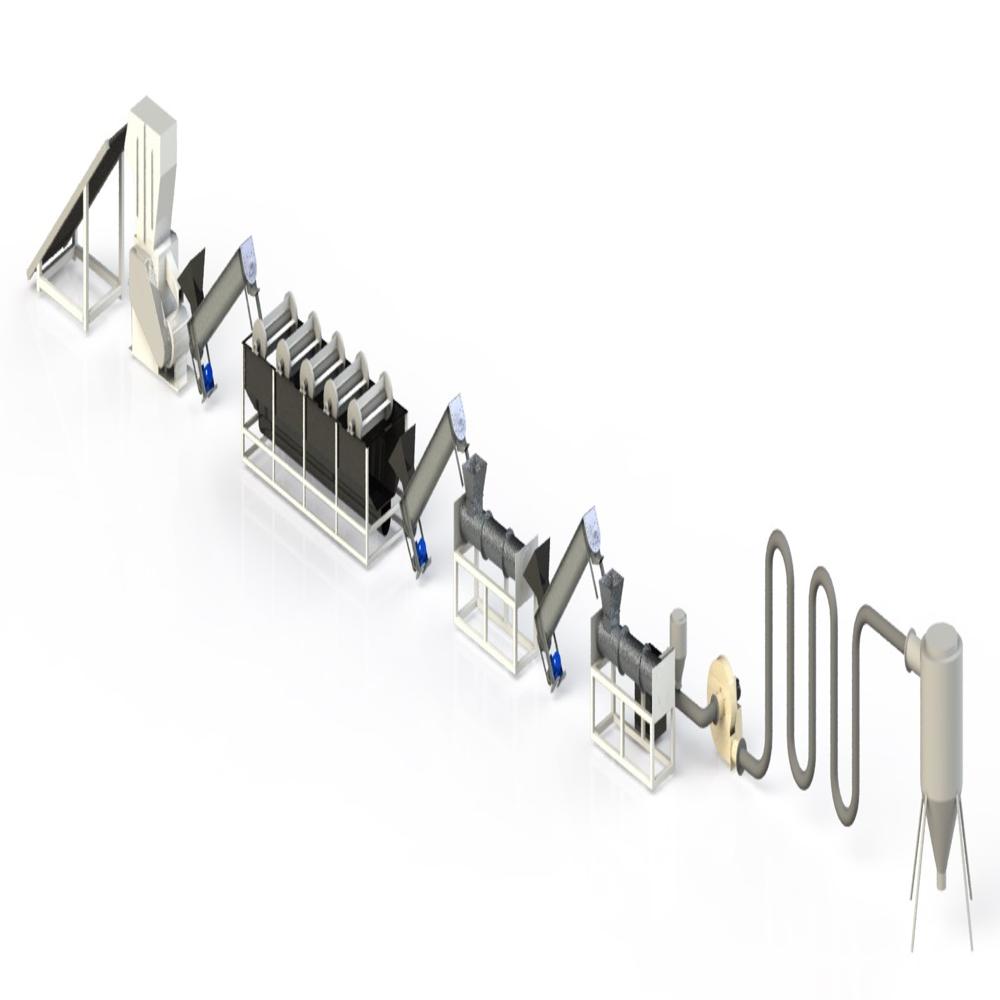

Pet bottle flakes washing plant

Name: Pet bottle flakes washing plant
Brand: Horizen Extrusions
Price: 3651000.0 INR
Availability: InStock

Price 3651000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Pet bottle flakes washing plant Specification

Installation Guideline
On site installation support provided

Speed
Adjustable

Motor Power
22 kW - 75 kW (per Module)

Model No
PBW-1200

Driven Type
Electric Motor Driven

Efficiency (%)
98%

Frequency
50/60 Hz

Usage & Applications
PET Bottle Recycling, Flake Cleaning

Automation Grade
Fully Automatic

Plastic Processed
PET Bottle Flakes

Production Capacity
Up to 3 Tons/hr

Accessories
Label Remover, Crusher, Hot Washer, Friction Washer, Dewatering Machine, Dryer, Dust Remover, Conveyor, Control Panel

Temperature Range
Cold and Hot Wash: 15C - 90C

Type
Bottle Flakes Washing Plant

Material
Stainless Steel

Computerized
Yes

Automatic Grade
Automatic

Control System
PLC Control

Drive Type
Electric

Voltage
380V / 415V

Power
250 kW

Weight (kg)
18000 kg

Dimension (L*W*H)
35000 x 5200 x 4500 mm

Color
Grey / Customized

Capacity
500-3000 kg/hr

Features
High efficiency, Low maintenance, Continuous operation

Machine Type
Recycling Equipment

Surface Finish
Polished

Power Consumption
220-250 kWh

Tank Material Thickness
5 mm and above

Cleaning Process
Multiple Stages: Label Removal, Pre-washing, Hot Washing, Rinsing, Drying

Safety Features
Emergency Stop, Overload Protection, Automatic Cut-off

Water Consumption
4-6 m3/hr

Number of Washing Modules
6

Material Feeding
Conveyor Belt Feed System

Spare Parts Availability
Available on request

Noise Level
<80 dB

Pet bottle flakes washing plant Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Against Delivery (CAD), Cash Advance (CA), Cheque

Supply Ability
5 Pieces Per Month

Delivery Time
60 Days

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
As per Requirement

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Certifications
ISO Certification, CE Certification

About Pet bottle flakes washing plant

Horizen Extrusions understand how Important Plastic recycling Industry is , in recent years with growing Waste Plastic recycling awareness has led to increase in demand of Plastic recycling machine . Horizen Extrusions Manufacture Complete Solution for Plastic Recycling from Washing , Agglomerator , Mixer , Granule Machine for PP HDPE LDPE grade reprocess machine . PP (Polypropylene), HDPE (High-Density Polyethylene), LDPE (Low-Density Polyethylene) and PET (Polyethylene terephthalate) are common types of plastics used in various applications we offer this Recycling machines specifically designed to handle these types of plastics can help recycle plastic waste and turn it into reusable raw materials. Horizen offers Various recycling machines ensuring the efficient and effective recycling of PP, HDPE, LDPE and PET plastic waste, contributing to environmental sustainability and resource conservation our dsigned machines help, the plastic recycling industry to reduce plastic pollution, conserve natural resources, and promote a circular economy for plastics.

Advanced Multi-Stage Cleaning Process

The PBW-1200 washing plant utilizes six separate modules for thorough PET flake cleaning, including label removal, pre-washing, hot washing, rinsing, and drying. Each step is precisely monitored for optimal results, ensuring up to 98% cleaning efficiency. The system reliably delivers high-quality, contaminant-free PET flakes suitable for recycling into new products or packaging materials.

Engineered for Safety and Efficiency

Equipped with safety features such as emergency stop, overload protection, and automatic cut-off, the plant maintains a noise level under 80 dB while protecting both operators and equipment. Fully automatic and controlled by a modern PLC system, it guarantees smooth, low-maintenance operation with a user-friendly interface.

Flexible and Reliable Operation

With a production capacity ranging from 500 to 3000 kg/hr and adjustable speed motors, the washing plant adapts to various recycling requirements. The conveyor belt feed system ensures continuous, efficient material handling. Installation support is provided onsite, and spare parts are readily available upon request to minimize downtime.

FAQ's of Pet bottle flakes washing plant:

Q: How does the PBW-1200 PET bottle flakes washing plant operate?

A: The plant utilizes a fully automatic process with a conveyor belt feeding system to move PET bottle flakes through six washing modules. These stages include label removal, pre-washing, hot washing, rinsing, and drying, all controlled via a PLC system for streamlined, efficient operation.

Q: What safety features are included in the PET bottle flakes washing plant?

A: The washing plant is equipped with emergency stop buttons, overload protection, and automatic cut-off mechanisms to ensure operator safety and to protect equipment during operations or in case of faults.

Q: When and where is the PBW-1200 suitable for installation?

A: This plant is ideal for plastic recycling facilities and manufacturers dealing with PET bottles, particularly where high throughput and efficient cleaning are required. Onsite installation support is provided to ensure correct setup and operation.

Q: What is the typical water and power consumption of this plant?

A: The PBW-1200 consumes 4-6 m3 of water per hour and has a power consumption rate of approximately 220-250 kWh, making it efficient for continuous industrial use.

Q: How is maintenance managed, and are spare parts available?

A: The plant is designed for low-maintenance operation. Spare parts such as label removers, crushers, washers, and dryers are available on request, ensuring quick replacement and minimal downtime.

Q: What are the main benefits of using this PET washing plant?

A: Users benefit from high cleaning efficiency (up to 98%), low noise, robust stainless steel construction, and automated controls. These features enhance operational reliability, safety, and overall productivity in PET recycling processes.
